Expansion Modules

In addition to Programmable Logic Controller (PLC), Distributed Control System (DCS), IoT Protocol Converters and gateway solutions, and Operator Control & Monitoring Systems, Mikrodev’s product range includes also Expansion Modules, the hardware components used to enhance the functionality of devices. These modules can be used in conjunction with Mikrodev’s other mentioned products to expand the features of devices.

Mikrodev’s extensive product range includes two types of expansion modules: XIO110 Series Expansion Modules and XIO211 Series Expansion Modules.



XIO211 and XIO110 series expansion modules offer Remote IO solutions over Ethernet, GSM, Wi-Fi, RS485, or RS232 networks. The types of IO available in the Remote IO unit are: Digital Input, Digital Output, Relay Output, Analog Input, Analog Output, and RTD (PT1000) Input.

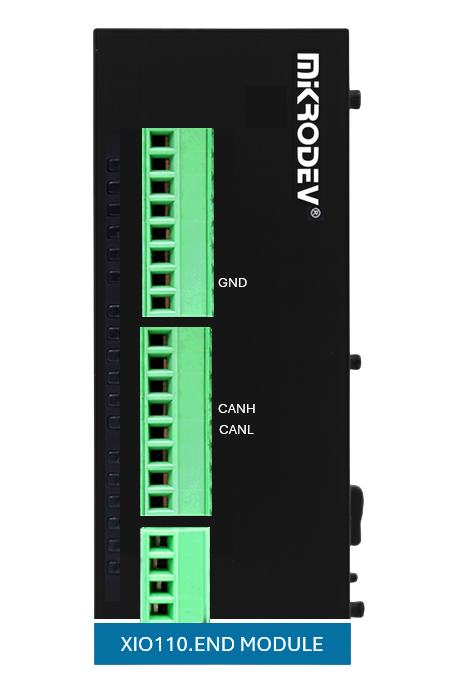

XIO110 Series Expansion Modules feature a 32-bit Cortex-M4 processor operating at 180 MHz and support the MODBUS and/or DALI communication protocols. Depending on the number of channels, XIO110 modules offer 8 or 16 DIN channels, 8 or 16 DOUT channels, 4 or 8 AIN channels, IO expansion capacity of up to 512 or 1024 points, 24 V DC power supply, and operating temperature of -20…+60°C. XIO110 modules find applications in various fields, such as building automation, energy systems, water systems, process automation, machine automation, transportation systems, IoT and telemetry applications, lighting systems, and agricultural irrigation systems.



On the other hand, XIO211 Series Expansion Modules are equipped with a 32-bit Cortex-M4 processor operating at 180 MHz, 8-channel relays, MODBUS communication protocol, AOUT type with 0-20 mA or 0-10 V, RTD types with PT100 or PT1000, and 6-channel RTD. Additionally, they support 12-bit or 16-bit ADC types and IO expansion capacity of up to 512 or 1024 points. XIO211 modules are also applicable in various fields, including building automation, energy systems, water systems, process automation, machine automation, transportation systems, IoT and telemetry applications, lighting systems, and agricultural irrigation systems as well.



Some of the differences between the XIO211 and XIO110 modules are as follows: XIO211 module has 16 digital inputs and 16 digital outputs, whereas the XIO110 module has only 8 digital inputs and 8 digital outputs. Additionally, the XIO211 module has 4 analog inputs and 2 analog outputs, while the XIO110 module has only 2 analog inputs and 1 analog output.

To examine all these technical specifications of the modules in more detail, you can use filtering options in the main product categories and list the expansion modules separately based on their technical specifications. Furthermore, on each product page, you can find comprehensive user guides and catalogs that cover technical details specific to the respective series.



Mikrodev offers flexible solutions for industrial automation with expansion modules, providing high-quality products designed for industrial automation protocols and communication standards such as PLC GSM, Modbus RTU, Modbus TCP, IEC 61850, IEC 60870-5-104, MQTT, and SCADA. Mikrodev’s product range offers efficient solutions for the industrial automation sector and is confidently preferred in divergent industries, including building automation, energy systems, water systems, process automation, machine automation, transportation systems, IoT and telemetry applications, lighting systems, agricultural irrigation systems, as it is mentioned above. As one of the leading institutions in the field of industrial automation with domestic PLCs, domestic SCADA, and domestic RTU protocol solutions, Mikrodev continues its relentless R&D investments. In this context, Mikrodev maintains its pioneering position in Turkey’s industrial automation market with its product range and continues investments ahead of the sector.
