Expansion Modules

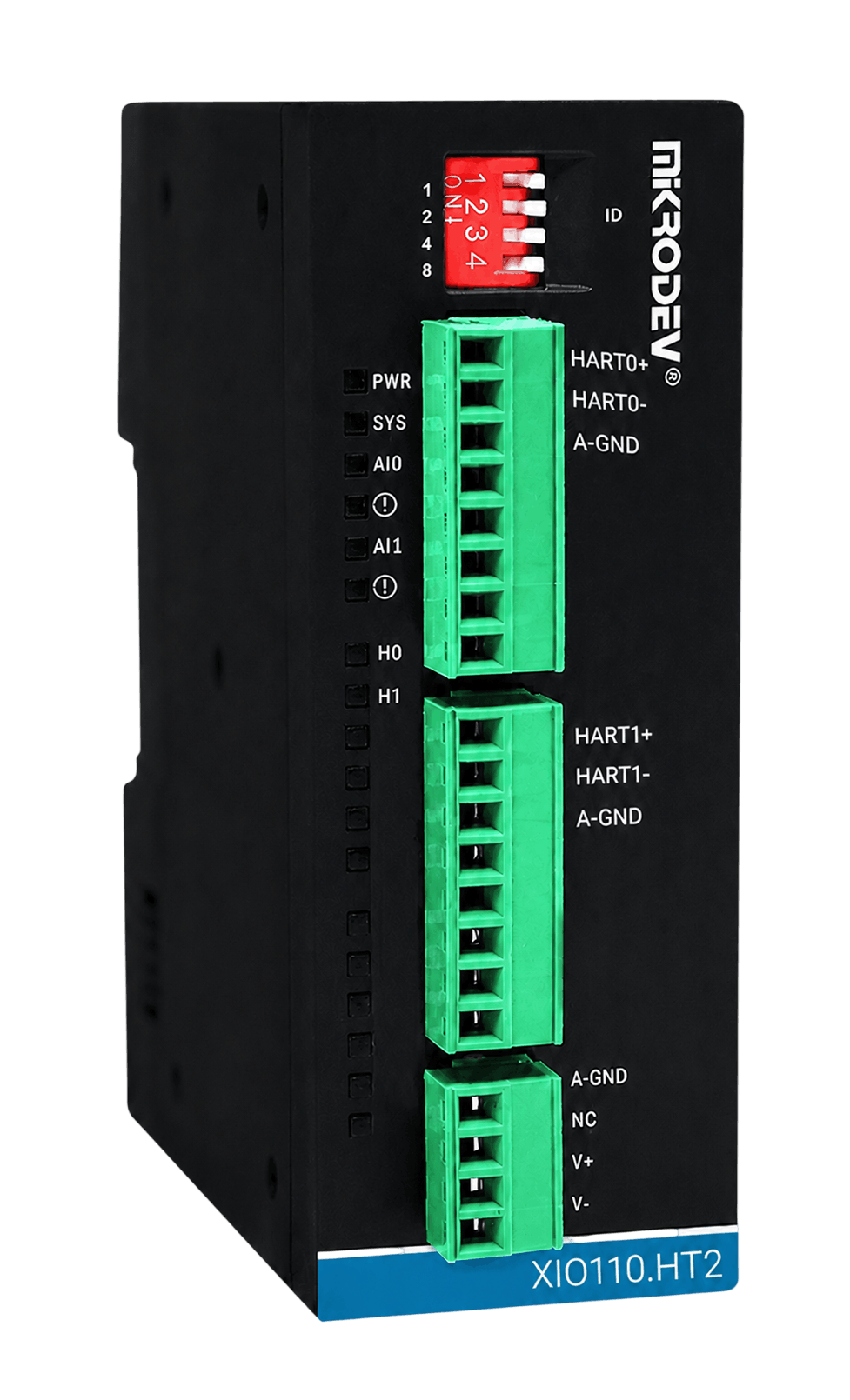

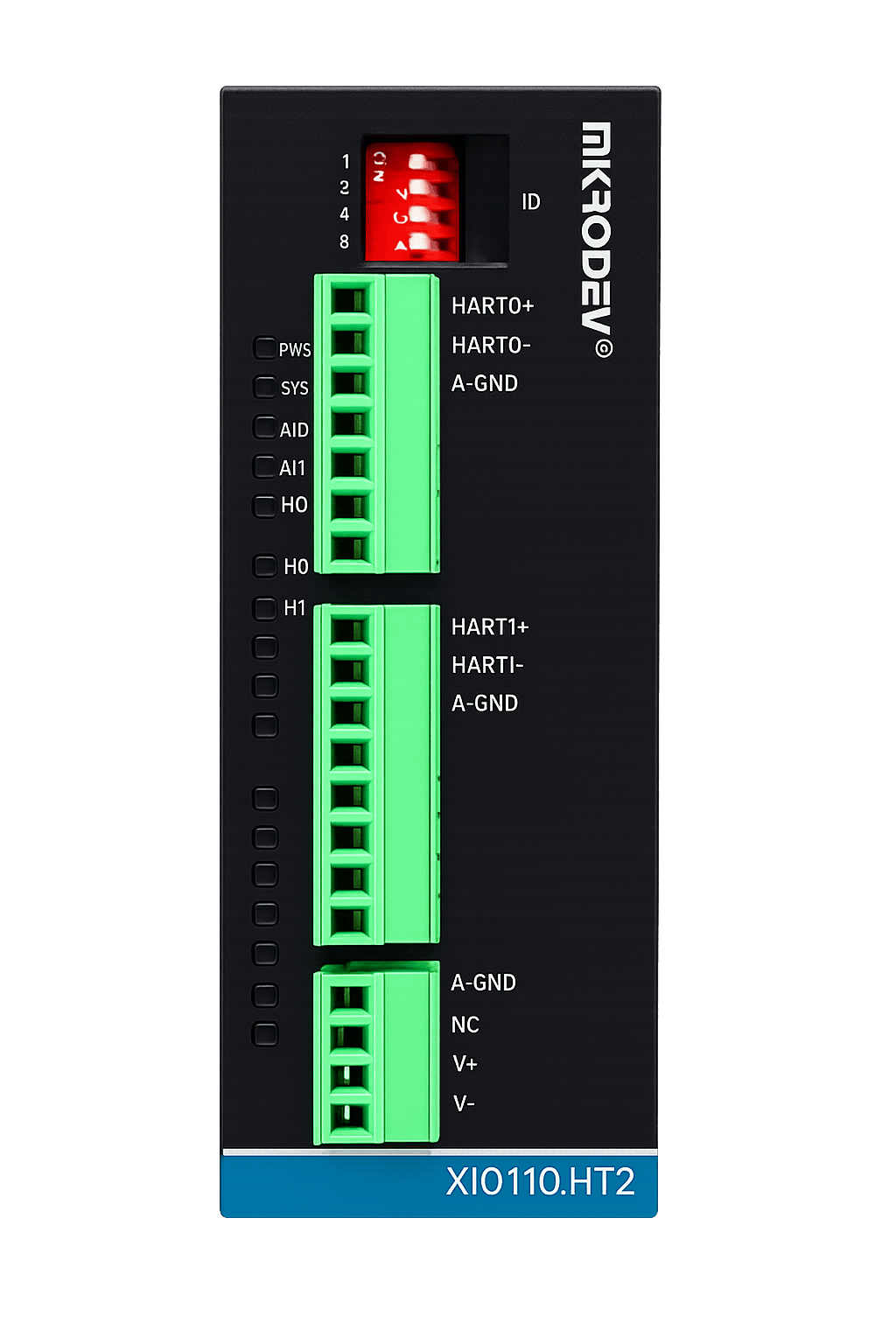

XIO110-E0N-GDC-B0501(2 ANALOG INPUT, 4-20 MA, HART Communication)
Mikrodev XIO110 series expansion modules are used together with MP110 series PLC, DM100 series Remote Terminal Unit and DM50 series Industrial Router IoT Protocol Gateway. The XIO110 HART Expansion Module provides 2-channel HART communication capability for industrial automation, process control and remote monitoring applications. It enables HART-compatible field devices such as smart transmitters, sensors and actuators to be integrated into Mikrodev PLC, RTU and IoT gateway systems.
Features
Drawing
Downloads
FILTRE
Close All
Product Features
Panel Type
DIN Rail
Connection
CANBUS Based, 1 MBit Speed
Address Assigment
Dip Switch
Hot Swap
Yes
Two-Way Expansion
Yes
Environmental Conditions
Operating Temperature
-20 / +60 C
Humidity
5..95 RH
Operating Altitude
0..2000 m
Protection Standard
IP20
Electrical Wiring
Inputs and Outputs
Demountable Terminal Block with Screw, (pitch 3.81 mm)
Power Supply Input
Demountable Terminal Block with Screw, (pitch 3.81 mm)
Warranty
Warranty Duration
24 Months
Certificates
CE
Standards
EN 55011 Class B
Board Type
Analog Input
2 Channel, 16 Bit Resolution
AIN Range
0-20 mA
HART Communication
Space Frequency
2200 Hz
Communication Mode
Half Duplex
HART Master
Primary Master
Multidrop Mode
Supported
Mark Frequency
1200 Hz
Burst Mode
Supported
Long Frame Support
Supported
Universal Commands
Supported
Common Practice Commands
Supported
Device Specific Commands
Supported
Polling Address
0...63
Dynamic Variables
PV, SV, TV, QV
Device Discovery
Supported
Device Identification
Supported
Options
Power Supply
24 V DC
