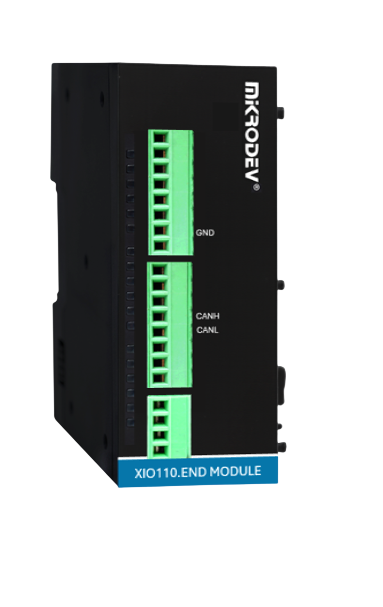

XIO110-E0N-GDX-B0000(End Module)

End Module is a connection and termination module designed to enable CANbus communication between DIN rail expansion modules in panel-mounted automation systems. In applications where expansion modules installed on different DIN rail lines need to communicate with each other, one End Module is installed at each end of the DIN rail to ensure reliable CANbus communication between the modules. Additionally, since the DM50 CPU does not include a CANbus socket, the use of an End Module is mandatory in applications where expansion modules need to be connected to the DM50. The End Module maintains signal integrity on the CANbus line, providing a stable and scalable system infrastructure. Mikrodev XIO110 series expansion modules are compatible for use with the MP110 series PLC, DM100, RTU100 series Remote Terminal Units (RTU), and the DM50 series Industrial Router IoT Protocol Gateway products.
